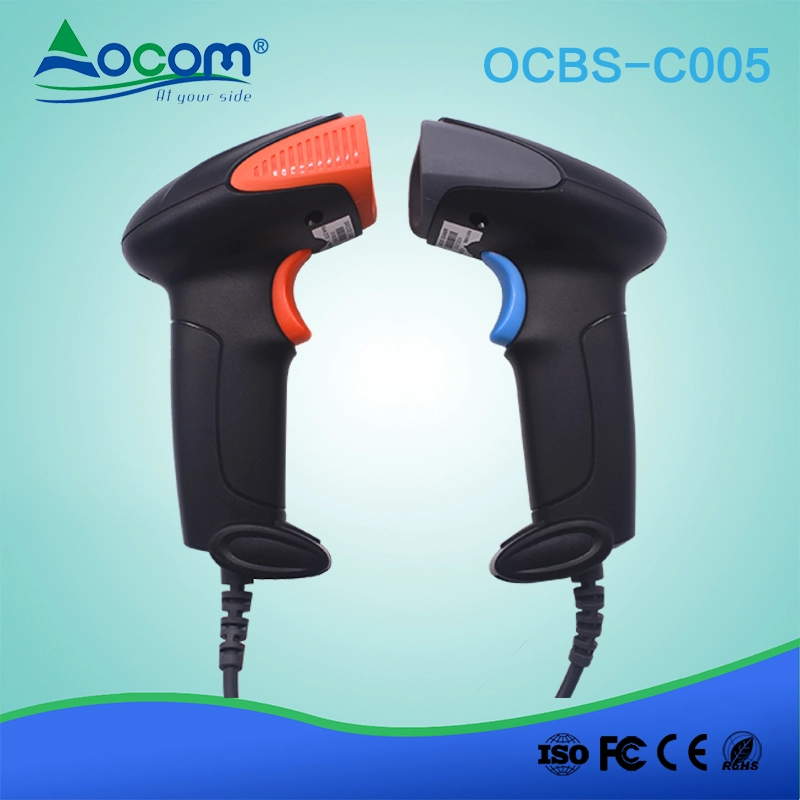

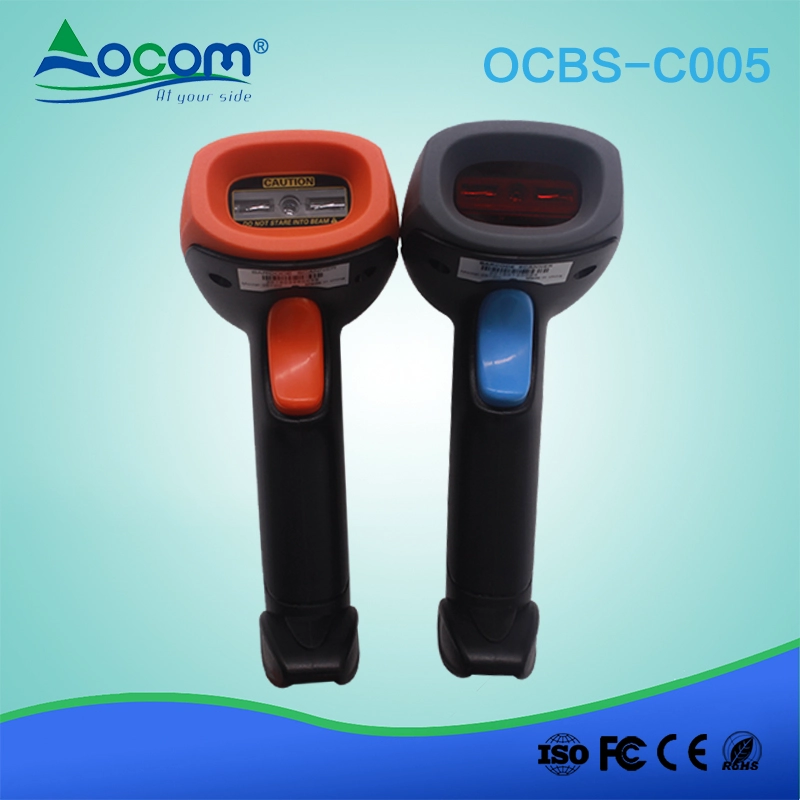

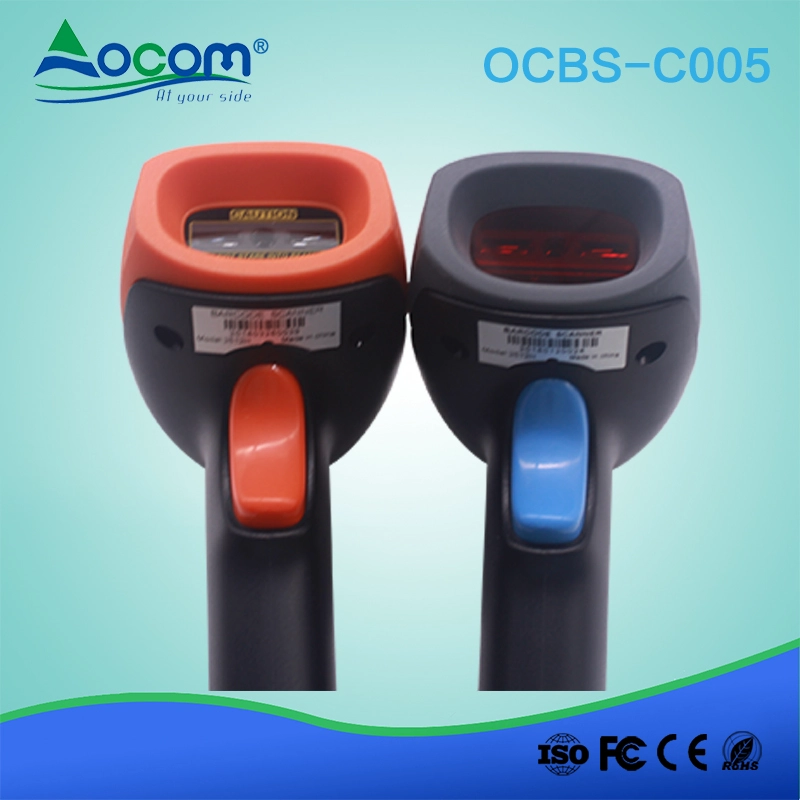

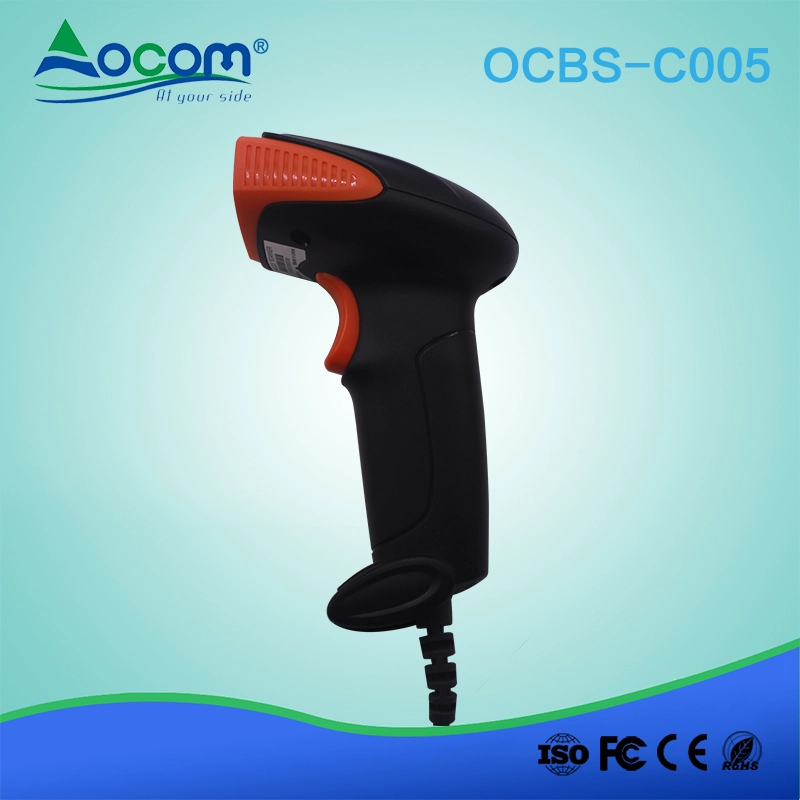

(OCBS-C005) Handheld One Dimensional CCD Barcode Scanner
- • The fast scan speed reach up to 300 times/second.
- • 3 mil excellent scanning accuracy.
- • Efficient decoding rate and ultra-low error rate. Many kinds of one-dimensional bar code can be identified.
- • Support reading bar codes from screen.
- • High resilient button: Use high rebound button, accurate limit, durable.
- • Scanning Mode Setting:Manual trigger and Auto Scanning and Continue Scanning.
- • Support multiple data interfaces: USB-HID, USB virtual port, UART, KB, HID-POS, etc.
- • Adopt a highly integrated design, high quality shell, have IP45 protection grade, 5m height fall many times, still can be used normally.
- • Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Handheld One Dimensional CCD Barcode Scanner
(Model:OCBS-C005)
Description:
- This BarCode Scanner can plug and play, no need to install software.
- Efficient decoding rate and ultra-low error rate.
- It can accurately and quickly scan a variety bar code in the strong light and dark environment.
Features:
- The fast scan speed reach up to 300 times/second.
- 3 mil excellent scanning accuracy.
- Efficient decoding rate and ultra-low error rate. Many kinds of one-dimensional bar code can be identified.
- Support reading bar codes from screen.
- No driver, plug and play.
- High resilient button: Use high rebound button, accurate limit, durable.
- Scanning Mode Setting:Manual trigger and Auto Scanning and Continue Scanning.
- Support multiple data interfaces: USB-HID, USB virtual port, UART, KB, HID-POS, etc.
- Support 16 country language.
- Adopt a highly integrated design, high quality shell, have IP45 protection grade, 5m height fall many times, still can be used normally.
- Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
- Can be customized according to customer demand.
Specification:
|
Light source type |
Optical Imaging; the wave length is 632mm. |
||
|
Imaging sensor |
linear imaging sensor(CCD) |
||
|
Pixel resolution |
2500 pixels |
||
|
Barcode precision |
≥ 3mil |
||
|
Printing Contrast Ratio |
≥ 30% |
||
|
Barcode type |
UPC/EAN/JAN, UPC/EAN with Supplemental, UCC/EAN 128, Code 39, MSI, Code11, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128Full ASCII, EAN-13, EAN-8, UPC-A, UPC-E, ISBN, Code 93, GS1 Databar, Codabar, Code93, Discrete2of5, IATA, RSSvariants, Codabar, Chinese2of5, International general dimensional barcodes, e.g. Inteleaved2/5, Interleaved2of5,China postal service code and so on |
||
|
Scanning speed |
300times/s |
||
|
Scanning angle |
Clockwise/anticlockwise |
±55° |
|
|
Up and down |
±25° |
||
|
Left and right |
±75° |
||
|
External dimensions(L x W x H) |
165×65×97 mm |
||
|
Weight |
190g |
||
|
prompting Mode |
Buzzer and LED indicator |
||
|
Maximum power consumption |
650mw |
||
|
Working voltage |
DC5V |
||
|
Electric current |
Maximum current |
130ma |
|
|
Working current |
86ma |
||
|
Standby current |
42ma |
||
|
Accessaries |
|||
|
Cable |
RS232/USB data cable(1.8m) |
||
|
Manual |
1 |
||
|
Environment |
|||
|
Storage temperature |
-40°C ~ 60°C |
||
|
Work temperature |
0°C ~ 50°C |
||
|
Relative humidity |
0 ~ 95% |
||
|
Anti-knock |
working fine after fall from 5m height |
||
