    (OCBS-D005/D105 )Mini Wireless Barcode Scanner With Screen and Memory(OCBS-D005/D105 )Mini Wireless Barcode Scanner With Screen and Memory(OCBS-D005/D105 )Mini Wireless Barcode Scanner With Screen and Memory(OCBS-D005/D105 )Mini Wireless Barcode Scanner With Screen and Memory

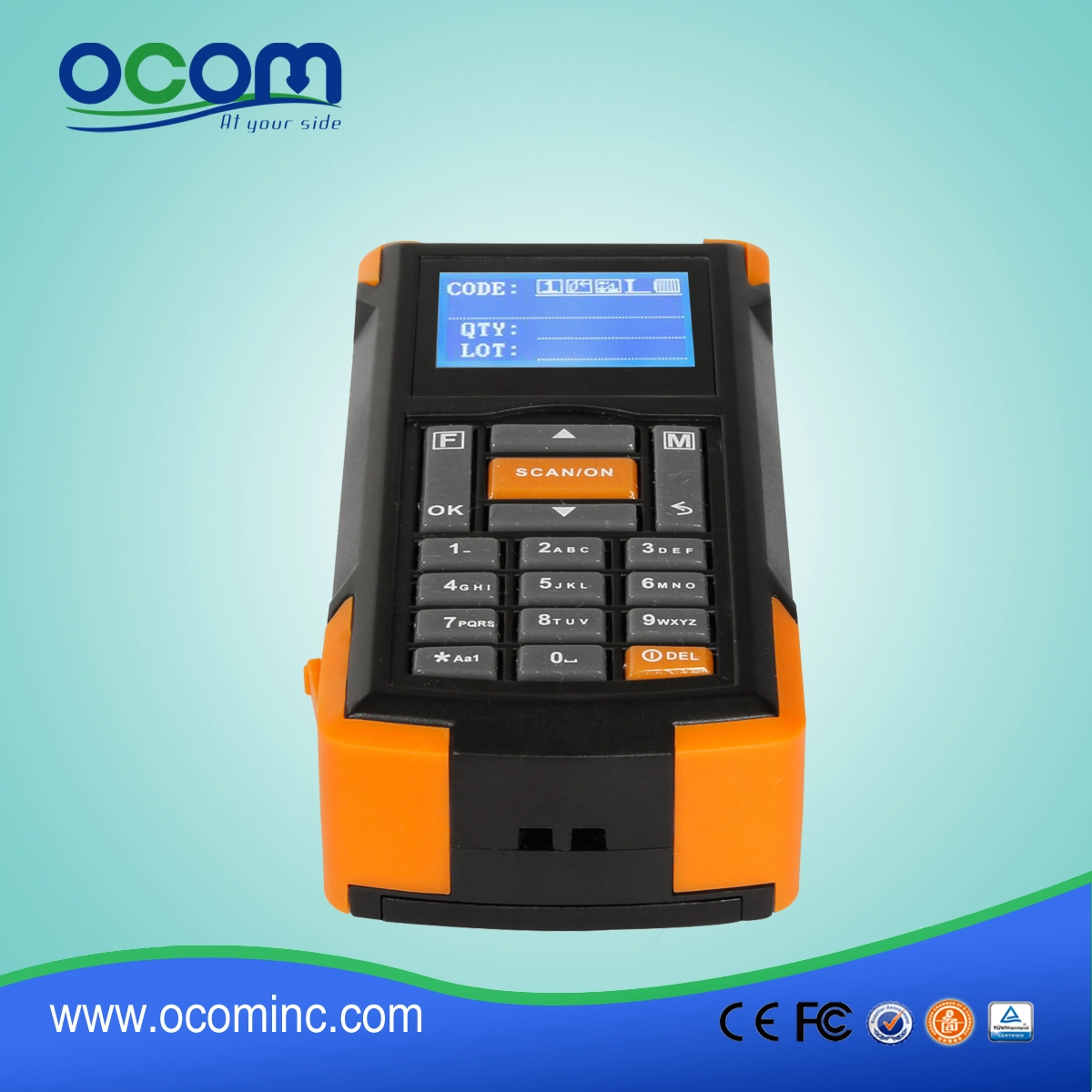

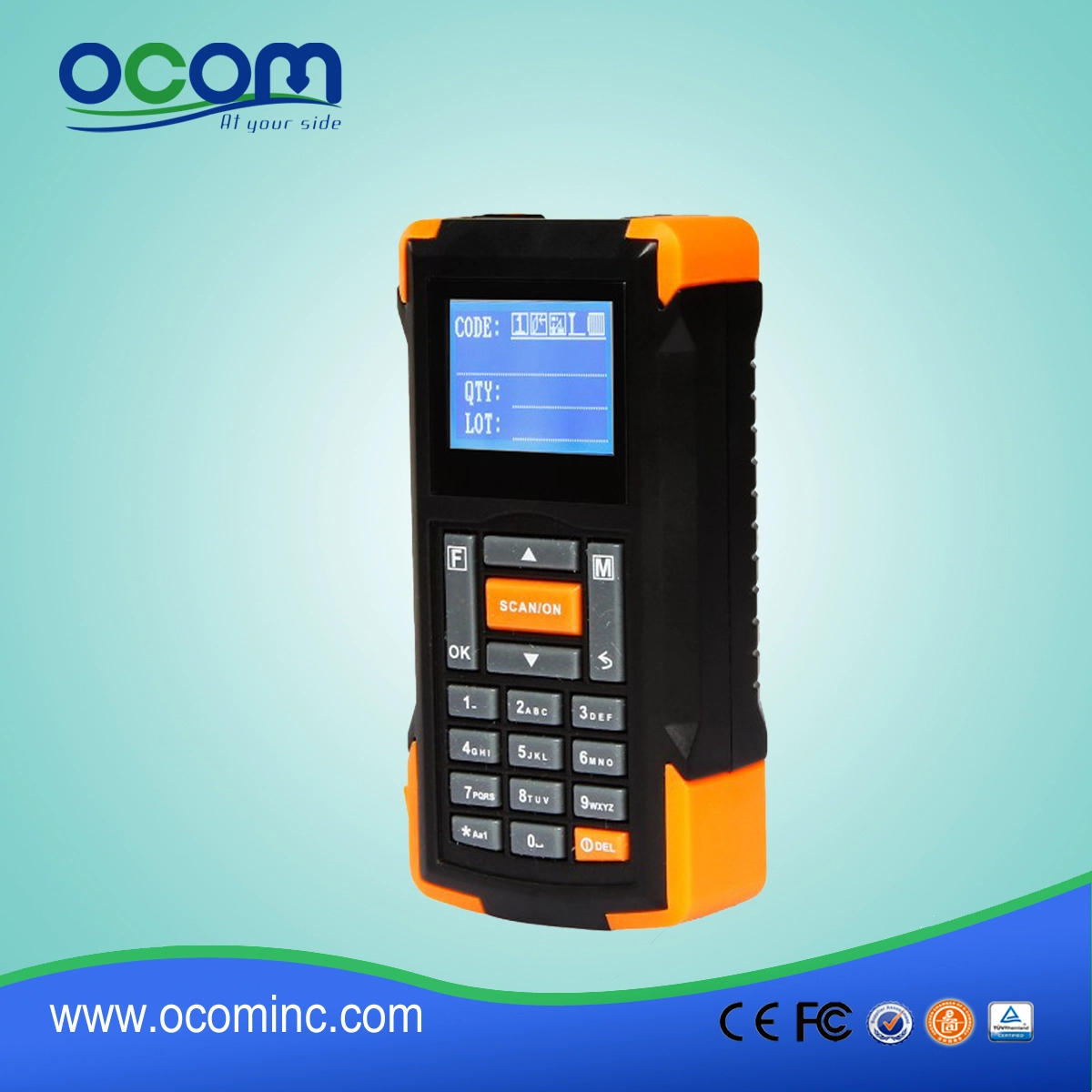

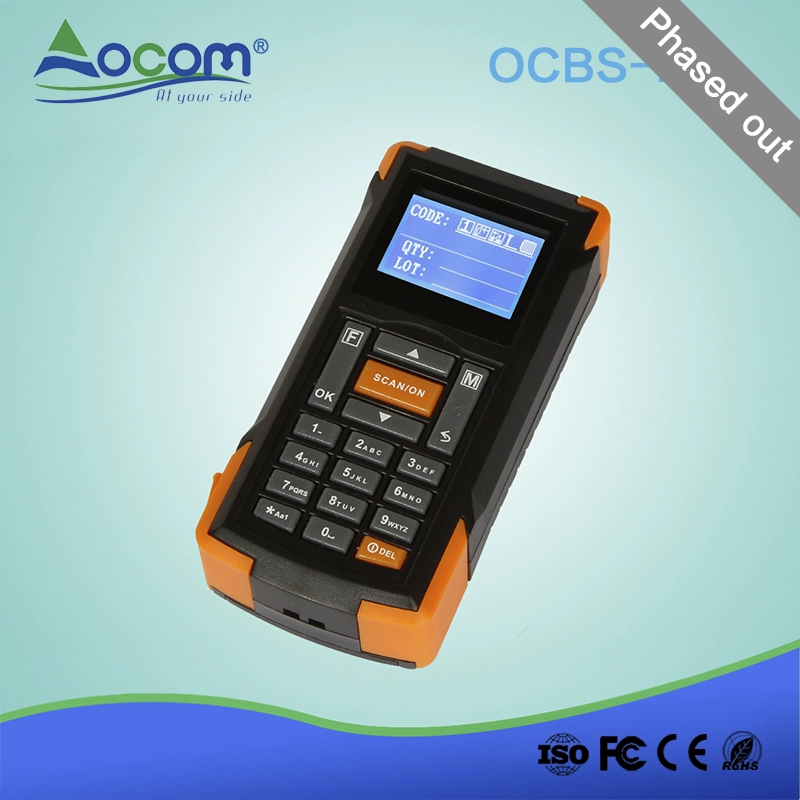

    (OCBS-D005/D105 )Mini Wireless Barcode Scanner With Screen and Memory

    • Mini Wireless Barcode Scanner With Screen and Memory
    • 433Mhz or bluetooth communication
    • Small size convenient and portable
    • Wireless working distance can meet general request, 30 to 300 m in open area
    • 4M memory can store 100,000 bar codes
    • Instantly store and bulk transfer mode, secure to keep the data
    • Auto-turn-off at low voltage, high efficiency and energy saving
    • No need special application software, easy and comfortable operation

    433Mhz or Bluetooth Mini Wireless Barcode Scanner with Screen

    (Model No.: OCBS-D005/D105)


    Feature:

    n  Mini 433Mhz or Bluetooth wireless barcode scanner with screen and memory, convenient and portable;

    n  Wireless working distance can meet general request, 30 to 300m in open area;

    n  4M memory Can store 100,000 barcodes;

    n  Instantly store and bulk transfer mode, secure to keep the data;

    n  Auto-turn-off at low voltage, high efficiency and energy saving;

    n  No need special application software, easy and comfortable operation.





    Specification:

    Wireless Communications:

    Modulation

    GFSK

    Transmission rate

    200Kbps

    Power

    10dBm

    Transmission Distance

    Visual straight line distance 300 meters

    Antenna

    Built-in spring antenna

    Performance Characteristics

    Light Source

    650nm laser

    Supported barcodes

    EAN-8, EAN-13,UPC-A,UPC-E, Code 39, Code 93, Code 128, EAN128, Codaber, Industoal 2 of 5,Interleave 2 of 5, Matrix 2 of 5, MSI etc

    Scanner Type:

    Bi-directional

    Scan rate

    48±2 scan/second

    Scan distance

    10-520mm

    Scan width

    20mm@window,220mm@200mm

    Resolution

    0.10mm(pcs0.9)

    Depth of Field

    0~250mm(0.33mm,PCS 90%)

    Working Way

    Triggered or automatic (continuous mode) scanning

    Physical Characteristics

    Memory:

    4M (Can store 100,000 barcodes)

    Interfaces:

    Standard configuration mini USB receiver; RS232 and PS2 optional

    Current:

    96mA (working)

    46mA(standby)

    Battery:

    Built-in rechargeable lithium ion battery (3.7V, 1900mAh)

    Material

    ABS+PC

    Dimension:

    102mmX46mmX28mm

    Weight:

    130g (with battery)

    User Environment

    Operation Temperature

    -20 Degree C~45 Degree C

    Storage Temperature

    -20 Degree C~60 Degree C

    Humidity:

    5~95% relative humidity, non-condensing

    Safe

    EMI/RFI:

    CE & FCC DOC compliance

    Safety Standard

    The second national laser safety standards

    Ordering Information

    OCBS-D005

    Mini 433Mhz Wireless Barcode Scanner with screen and memory

    OCBS-D105

    Mini blue tooth Wireless Barcode Scanner with screen and memory

     Relevant documents:

     Driver and CD files
