Mini Portable 58mm Bluetooth Thermal Printer

(Model Number: OCPP- M13)

Features:

Windows, Android ,IOS operation system supported;

SDK for Android,IOS;

57*40 paper warehouse;

7.4V,1600mAh Battery;

90mm/sec high print speed;

50km thermal printer head life;

Multiple languages supported;

Support multiple devices connect and print at the same time;

ESC/POS command set compatible.

Specification:

General
Model	OCPP-M13
Name	58mm mini portable bluetooth thermal printer
Color	Black
Interface	USB + Bluetooth
Battery	7.4V DC/ 1600mAh rechargeable li-ion battery
Power adaptor	DC 9V/2A
Buffer	Input buffer: Up to 20K, Flash: 256K
TPH Life	50KM

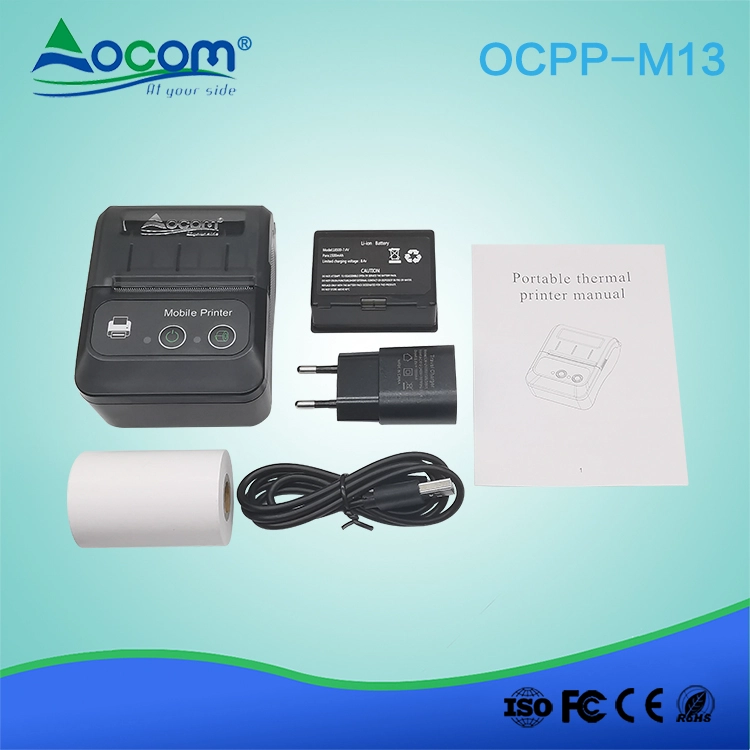

Accessories	Data cable, power adaptor, power cord, paper roller, CD, manual
OS supporting	Windows &Android & IOS Systems
Printing capability
Printing method	Direct thermal line
Resoluiton	203DPI (8dot/mm)
Printing speed	70mm/sec (Max 90mm/sec)
Print width	48mm
Characters per Line	Font A: 32 character /Line Simple, traditional Chinese: 16 character /Line
Printing Command	Compatible with ESC/POS
Barcode and character
Character size	FontA: 1224dots, 1.5(W)3.0(H) Simplified/Traditional: 2424dots, 3.0(W)3.0(H)mm
Character set	Alphanumeric/ Chinese Kanji
Media
Paper type	Thermal roll paper
Paper width	57.5±0.5mm
Paper feeding method	Easy paper loading
Paper roll diameter	40mm Max
Paper thickness	0.06-0.08mm
Physical

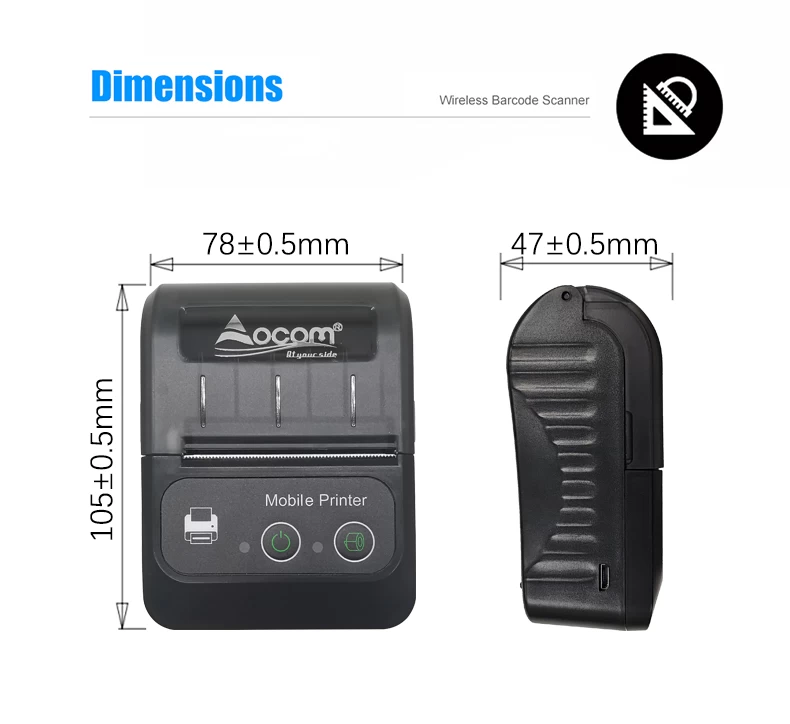

Dimension	1057847mm
Weight	Net: 300g Gross: 400g
Package box	15012565 mm
20 in 1 carton	325274360mm/7.8kg
Environment
Working temperature& humidity	0 to 45 degrees centigrade, 10%~80% No condensation
Storage temperature& humidity	-20 to 60 degrees centigrade, 10%~90% No condensation
