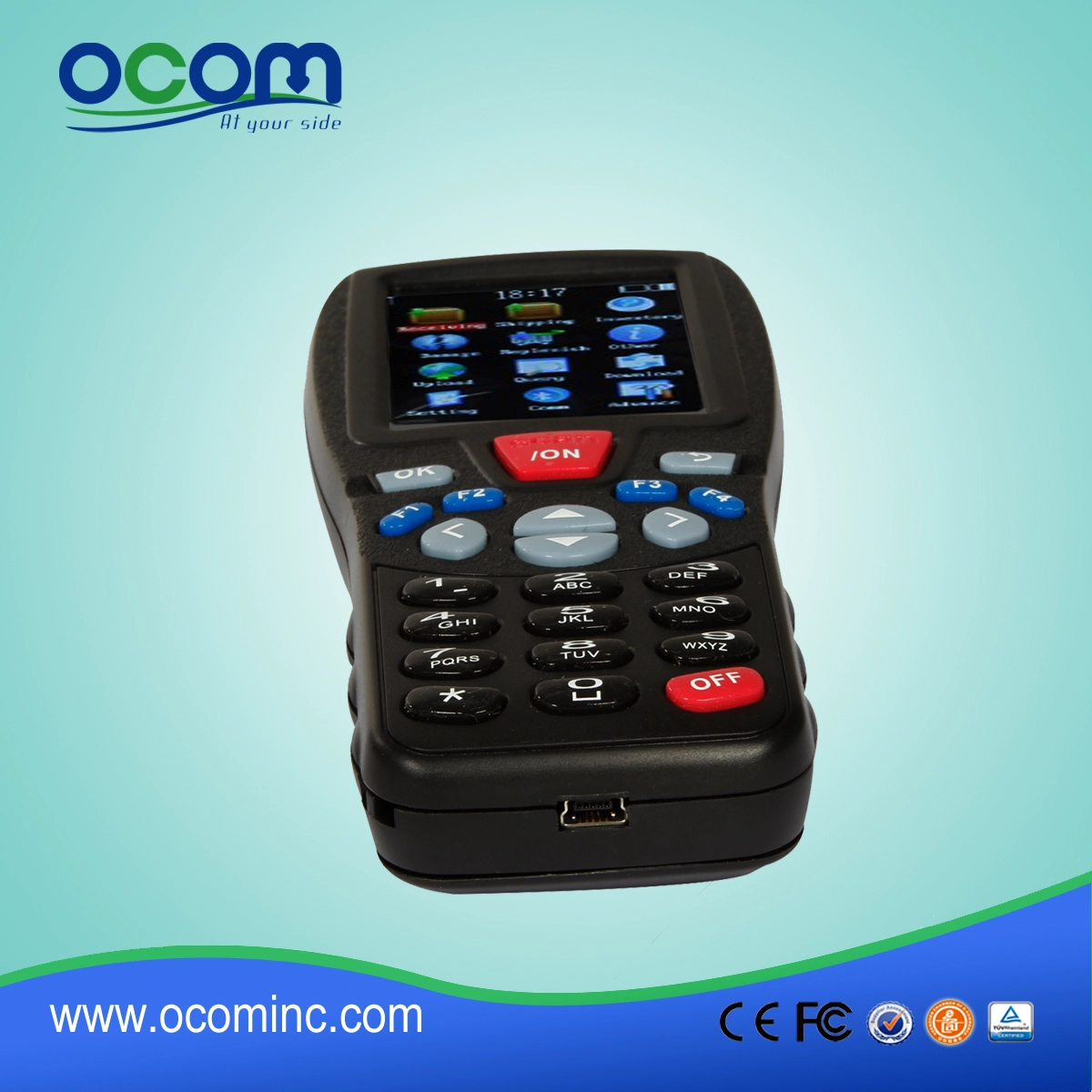

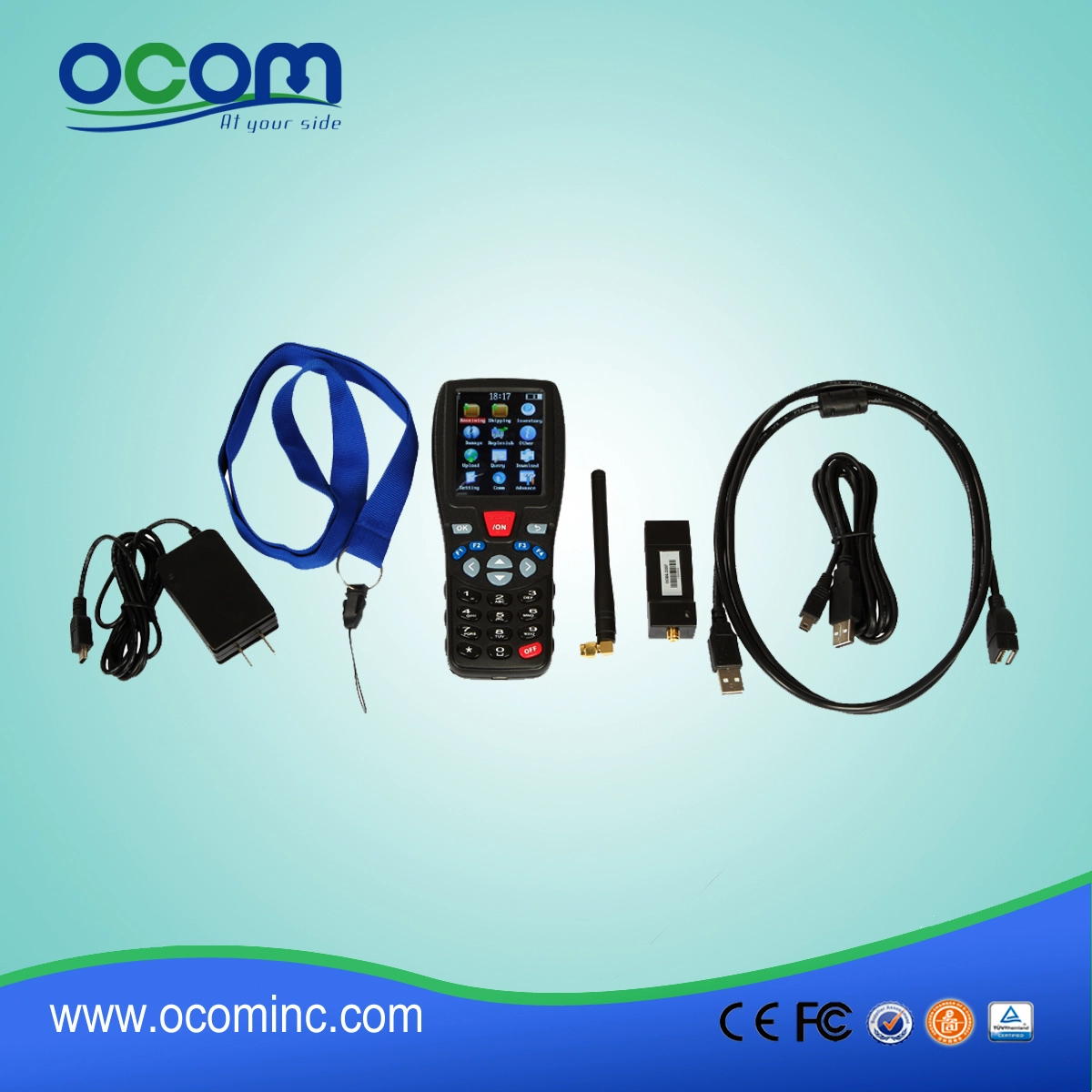

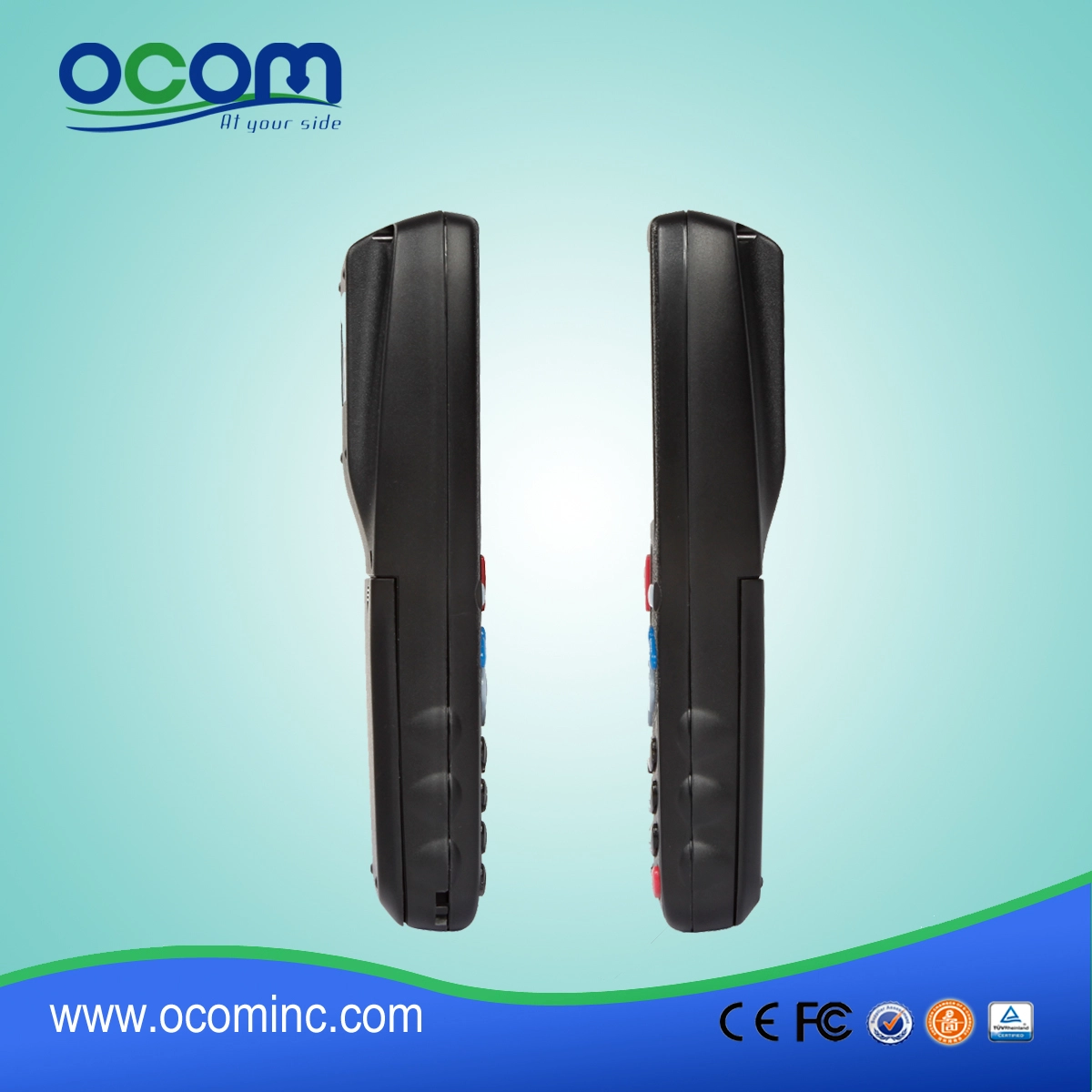

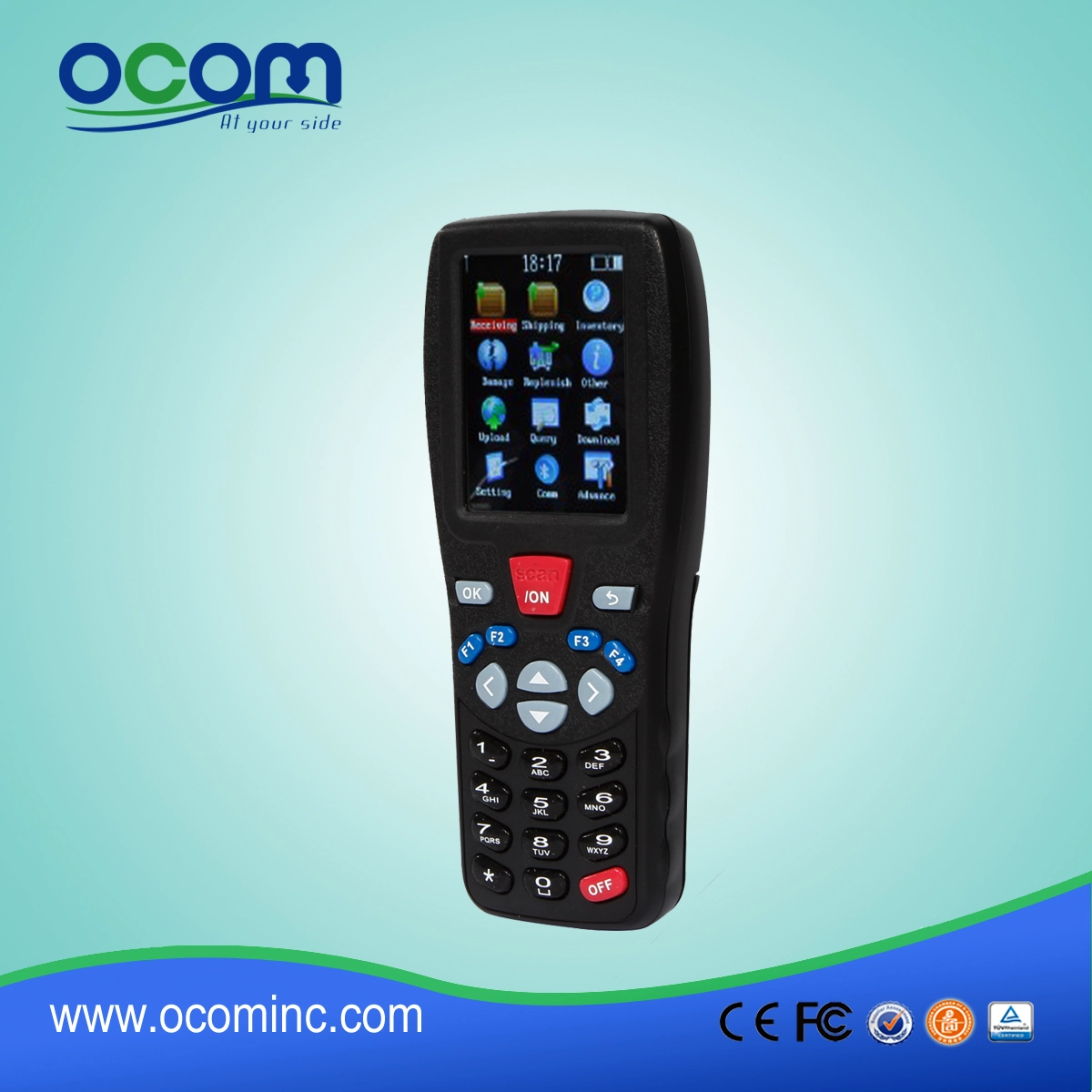

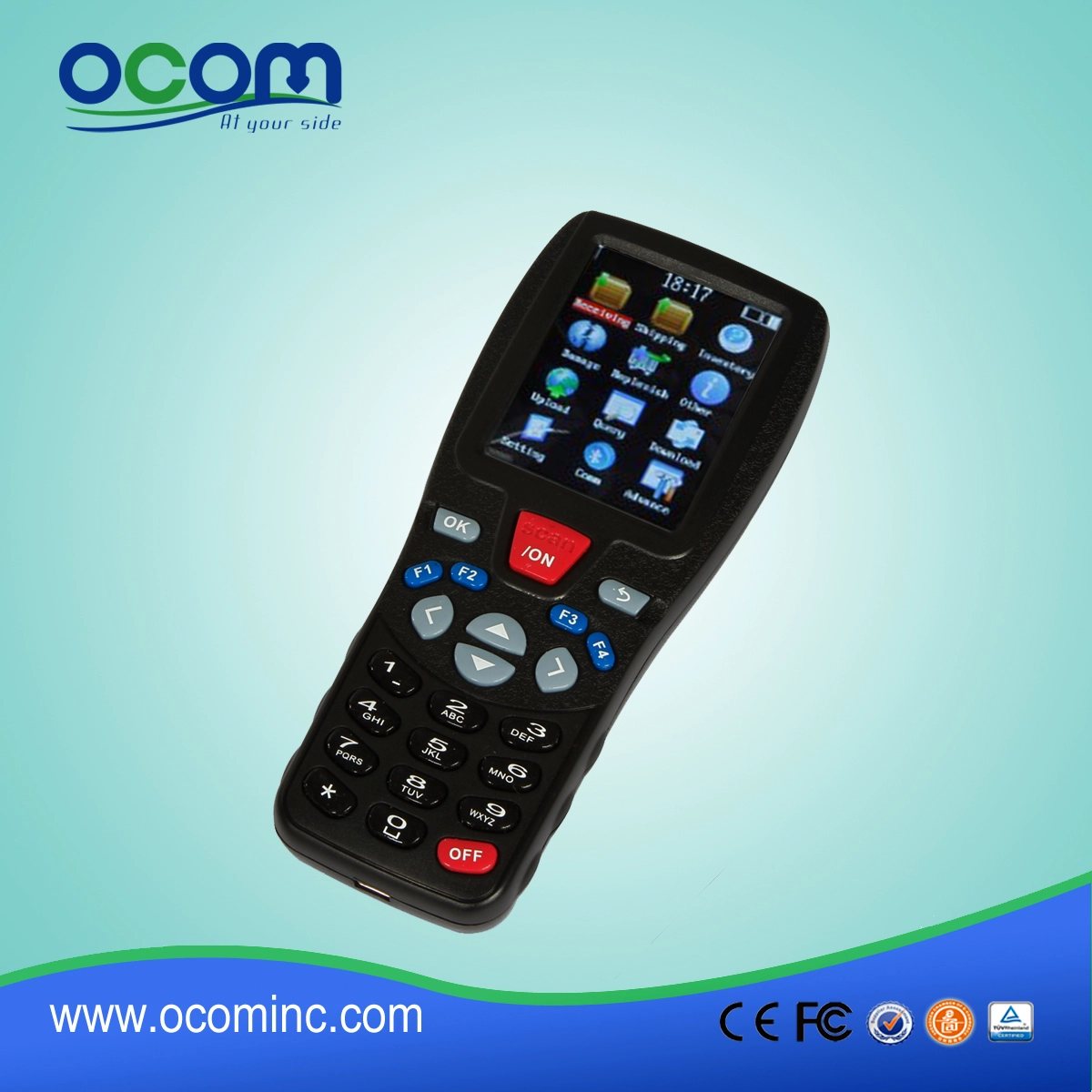

(OCBS-D107) USB Portable Stocktaking Terminal Industrial PDA
- Suitable for overall process of the commodity circulation including receiving, shipping, stocktaking, loss repot, replenishment etc;
- Support product information download, automatically matches products and show product name after scanned the barcode;

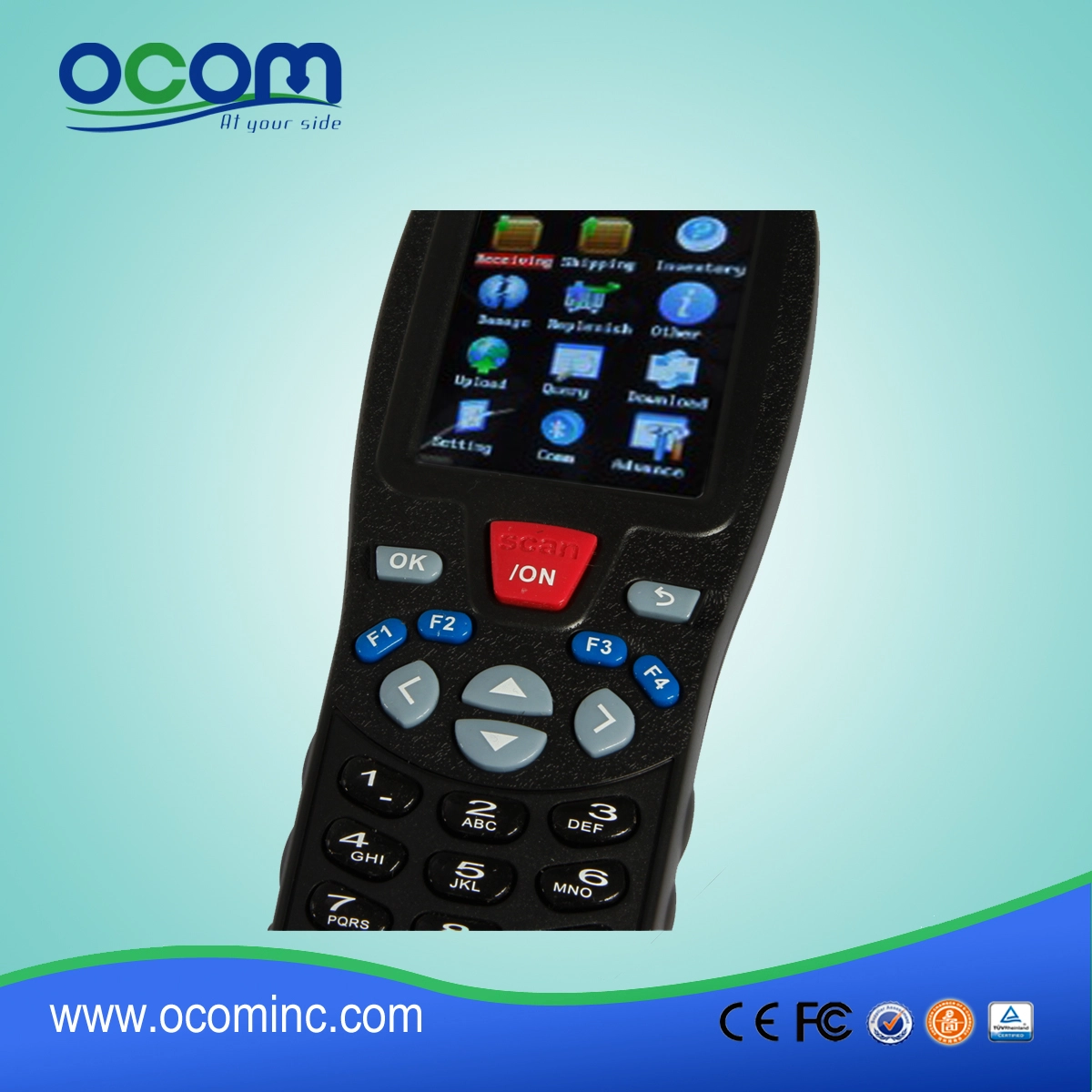

- 2.8 inches color display, menu with image for easy operation;

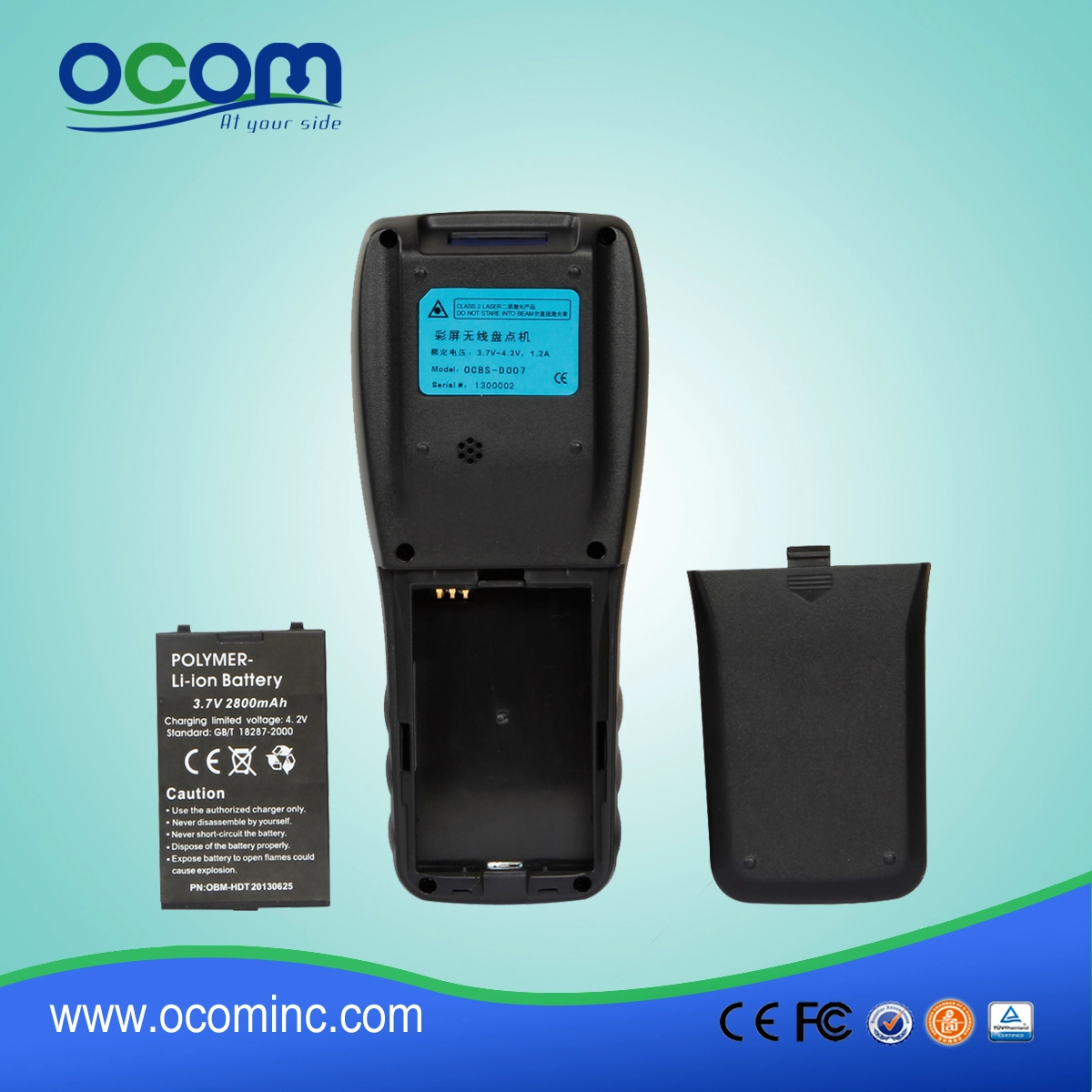

- 2800mA super capacity battery ensures long working time;
Specification:
Performance Characteristics |
||
Light source |
650nm laser |
|
Scan Model |
Single line |
|
Scan width & field |
220mm/0~250mm(0.33mm,PCS 90%) |
|
Interface |
Standard configuration mini USB receiver; RS232 and PS2 optional |
|
Scan rate |
48±2 scan/second |
|
Error Rate |
1/5,000,000 |
|
Working way |
triggered or automatic (continuous mode) scanning |
|
Scan angle |
Pitch 30°/ Roll 65°/Yaw 55° |
|
Supported barcodes |
EAN-8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codaber, Industoal 2of 5,Interleave 2of5,Matrix 2of5, MSI etc. |
|
Indicator |
Beeper, LCD display |
|
Physical Characteristics |
||
Screen |
2.8 inch, 10*10 lines; resolution: 320*240 |
|
Dimensions |
Terminal: 160x68x29mm; Receiver: 52x20x10mm |
|
Material |
ABS+ silica |
|
RAM |
16M |
|
Color |
Black or Grey |
|
Communication Characteristics |
||
Frequency |
433MHZ |
|
Modulation |
GFSK |
|
Transmission Distance |
Visual straight line distance 300 meters (Max) |
|
Transmission rate |
200Kbps |
|
Electric Characteristic |
||
Battery |
Li-Battery(3.7V,2800mAh) |
|
EMI/RFI: |
CE&FCC DOC compliance |
|
Working Current |
50mA |
|
Environment |
||
Operation Temperature |
0 Degree C~45 Degree C |
|
Storage Temperature |
-20 Degree C ~60 Degree C |
|
relative humidity |
5%~95%(non- condensing) |
|
ambient brightness |
Max 5,000Lux |
|
Ordering Information |
||

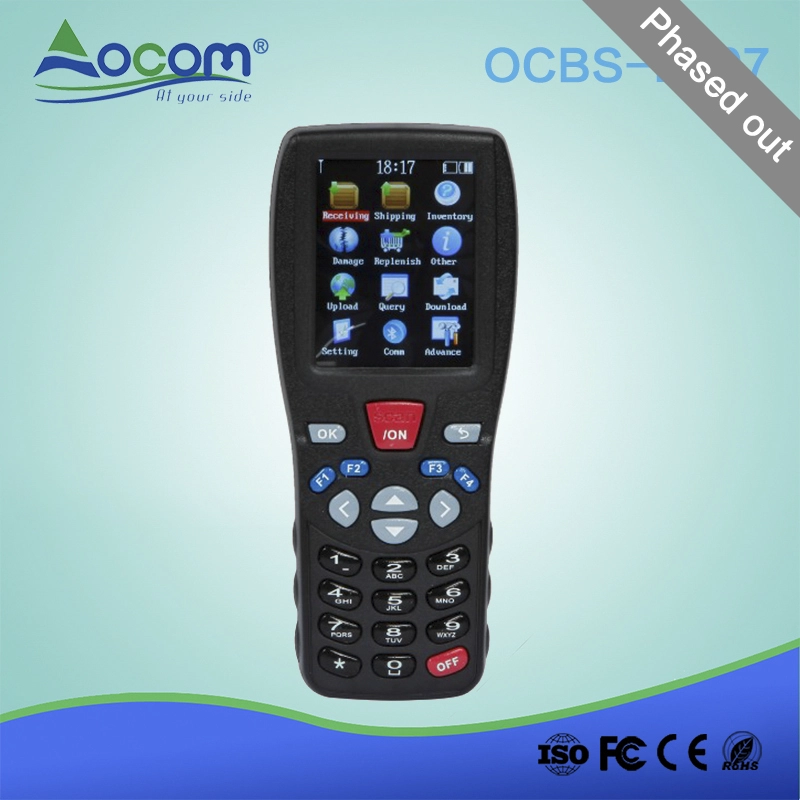

OCBS-D007 |
433MHZ Wireless Portable Stocktaking Terminal |
|
OCBS-D107 |
USB Cable Portable Stocktaking Terminal |
