The fast scan speed reach up to 300 times/second.
3 mil excellent scanning accuracy.
Efficient decoding rate and ultra-low error rate. Many kinds of one-dimensional bar code can be identified.
Support reading bar codes from screen.
No driver, plug and play.
High resilient button: Use high rebound button, accurate limit, durable.
Scanning Mode Setting:Manual trigger and Auto Scanning and Continue Scanning.
Support multiple data interfaces: USB-HID, USB virtual port, UART, KB, HID-POS, etc.
Support 16 country language.
Adopt a highly integrated design, high quality shell, have IP45 protection grade, 5m height fall many times, still can be used normally.
Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Can be customized according to customer demand.

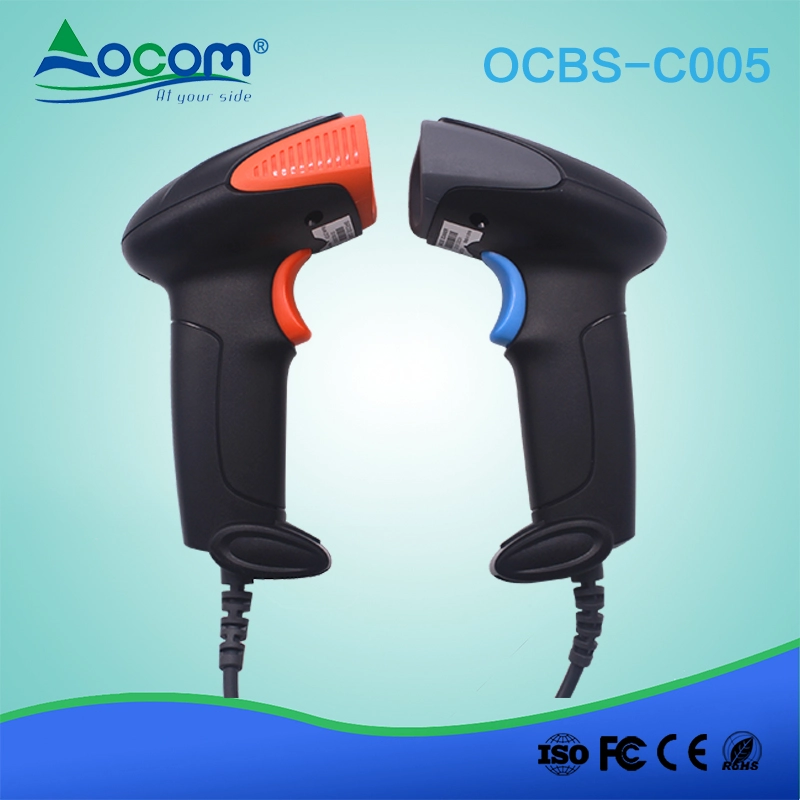

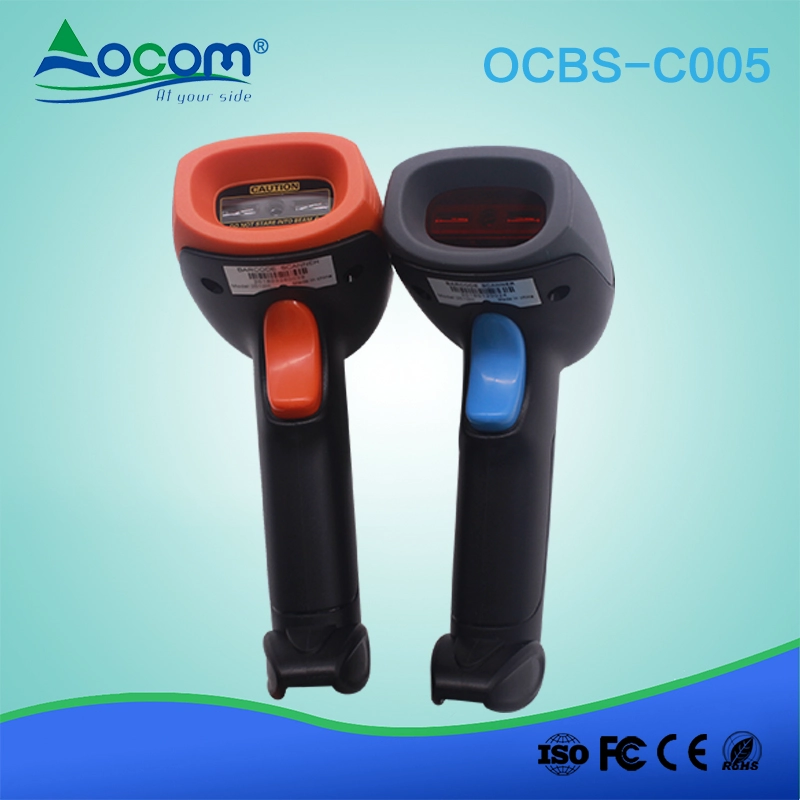

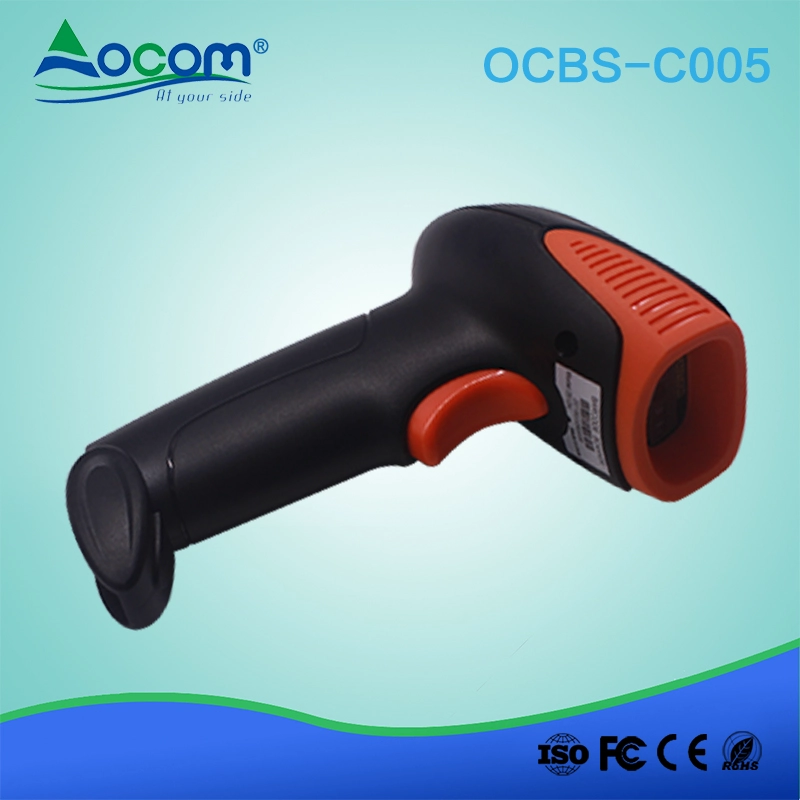

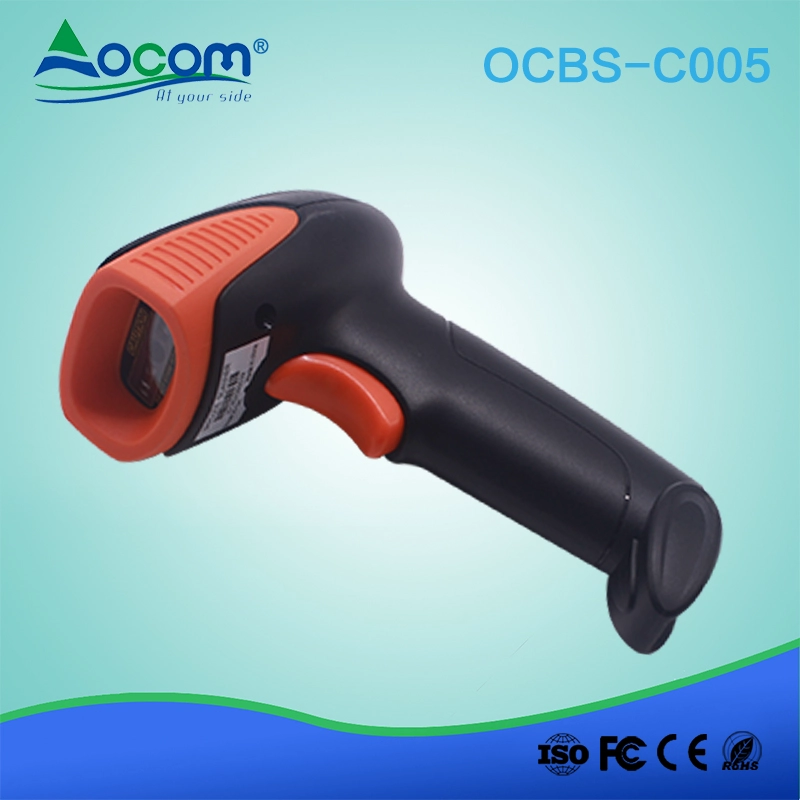

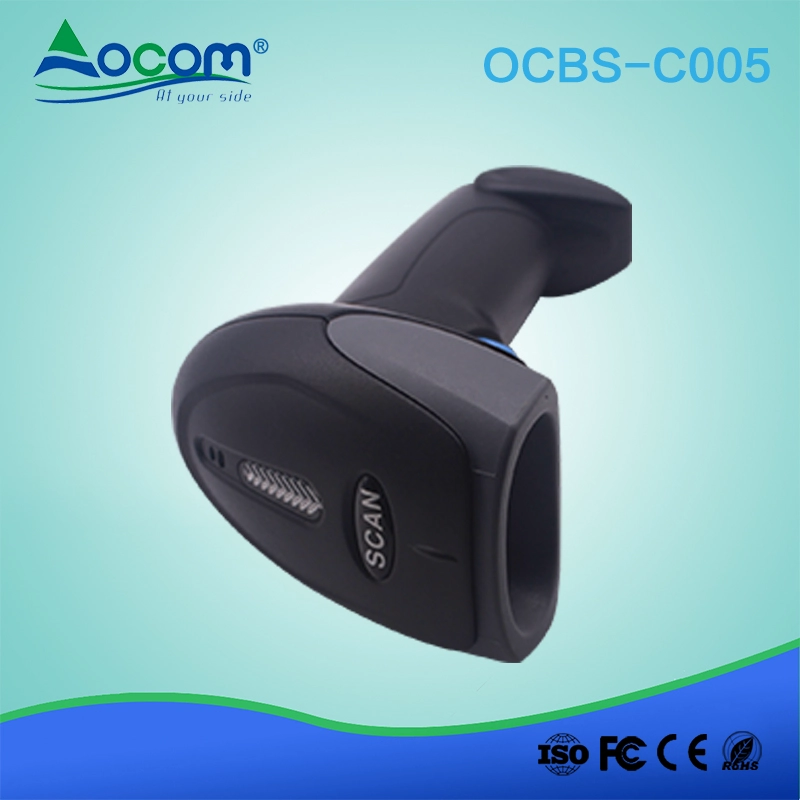

China high speed One Dimensional CCD Barcode Scanner

(Model:OCBS-C005)

Description:

This BarCode Scanner can plug and play, no need to install software.

Efficient decoding rate and ultra-low error rate.

It can accurately and quickly scan a variety bar code in the strong light and dark environment.

Features：

• The fast scan speed reach up to 300 times/second.

• 3 mil excellent scanning accuracy.

• Efficient decoding rate and ultra-low error rate. Many kinds of one-dimensional bar code can be identified.

• Support reading bar codes from screen.

• No driver, plug and play.

• High resilient button: Use high rebound button, accurate limit, durable.

• Scanning Mode Setting:Manual trigger and Auto Scanning and Continue Scanning.

• Support multiple data interfaces: USB-HID, USB virtual port, UART, KB, HID-POS, etc.

• Support 16 country language.

• Adopt a highly integrated design, high quality shell, have IP45 protection grade, 5m height fall many times, still can be used normally.

• Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.

• Can be customized according to customer demand.

Scanner parameters:

Light source type			Optical Imaging; the wave length is 632mm.
Imaging sensor			linear imaging sensor(CCD)
Pixel resolution			2500 pixels
Barcode precision			≥ 3mil
Printing Contrast Ratio			≥ 30%
Barcode type			UPC/EAN/JAN, UPC/EAN with Supplemental, UCC/EAN 128, Code 39, MSI, Code11, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128Full ASCII, EAN-13, EAN-8, UPC-A, UPC-E, ISBN, Code 93, GS1 Databar, Codabar, Code93, Discrete2of5, IATA, RSSvariants, Codabar, Chinese2of5, International general dimensional barcodes, e.g. Inteleaved2/5, Interleaved2of5,China postal service code and so on
Scanning speed			300times/s
Scanning angle	Clockwise/anticlockwise		±55°
	Up and down		±25°
	Left and right		±75°
External dimensions(L x W x H)			165×65×97 mm
Weight			190g
prompting Mode			Buzzer and LED indicator
Maximum power consumption			650mw
Working voltage			DC5V
Electric current	Maximum current		130ma
	Working current		86ma
	Standby current		42ma
Accessaries
Cable		RS232/USB data cable(1.8m)
Manual		1
Environment
Storage temperature		-40°C ~ 60°C
Work temperature		0°C ~ 50°C
Relative humidity		0 ~ 95%
Anti-knock		working fine after fall from 5m height
